Unique Functions:

• Wide DC output voltage range: 50Vdc-750Vdc, with no current reduction in the low-voltage range, meeting the fast charging needs of various electric vehicles and battery packs.

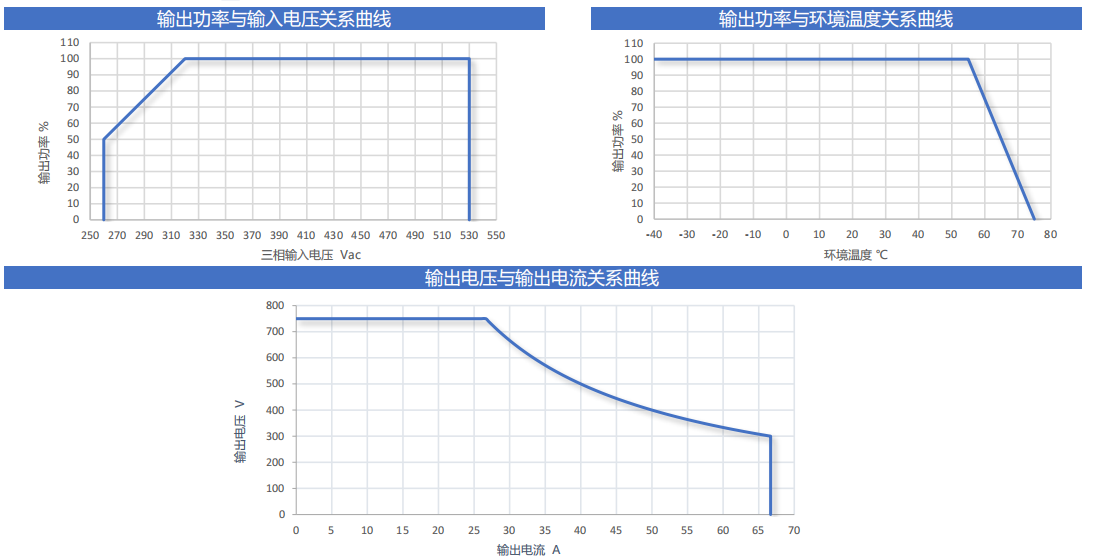

• Wide and uninterrupted constant power voltage range: 300Vdc-750Vdc constant power output without interruption, ensuring stable, reliable, and safe charging with strong and fast charging capability.
• Ultra-low standby power consumption: Less than 9W.
• Unique three-proofing design: Unique protection and process design against salt spray, moisture, and mildew, enabling the module to adapt to various charging station application scenarios.
• Built-in intelligent discharge circuit: Automatically discharges residual charge, simplifies system design, and improves system reliability.
• High efficiency across the full load range: Operates with high efficiency across the full load range. Compared to industry products whose highest efficiency point is in the low-load range and efficiency decreases when fully charged, this operating mode is more energy-saving.
• Wide temperature range: -40°C ~ +75°C, with derating output above +55°C, adapting to applications in various scenarios.

Main Features:

• Energy saving and environmental protection: High efficiency across the full load range and ultra-low standby power consumption, with efficiency up to 96%, effectively reducing energy loss and achieving energy conservation and environmental protection.
• Wide input voltage range: AC 260Vac ~ 530Vac, adapting to various power grid environments.
• Three-phase input without neutral wire: Simplifies system design, eliminates the risk of excessive neutral wire current, and reduces system costs.
• Full digital control: Dual DSP design realizes full digital control of the charging module, ensuring high reliability of control.
• Non-destructive hot swapping: The module has a true non-destructive hot swapping function, allowing plug-and-play.
• Battery reverse flow protection: Effectively protects the battery while ensuring reliable and safe system operation.
• Excellent electromagnetic compatibility performance: Meets the electromagnetic compatibility (EMC) CLASS A requirements in EN61000-6-1 and EN61000-6-3 standards, with minimal electromagnetic radiation and interference.
• Reliability certification: Certified by Kaipu and the State Grid Electric Power Research Institute.
• State Grid “Three Unifications” standard: The size, interface, and protocol comply with the State Grid standard and can replace any rectifier module that complies with the State Grid “Three Unifications” standard.
• Protocol compatibility: The communication protocol is compatible with the Infineon protocol and the State Grid standard communication protocol.

Application Scenarios:

• DC charging stations for low-speed electric vehicles, passenger electric vehicles, electric logistics vehicles, electric midibuses, and electric buses.
• Charging equipment for electric forklifts and electric towing vehicles.
• State Grid “Six Unifications” standard charging piles.
