A highly efficient and reliable DC inverter for energy storage, mainly developed for the DC-coupled scheme of small and medium-sized energy storage microgrids.
Wide input range, isolated air duct design, with multiple protections, supports multiple units in parallel operation. Suitable for application in microgrid DC coupling scenarios.

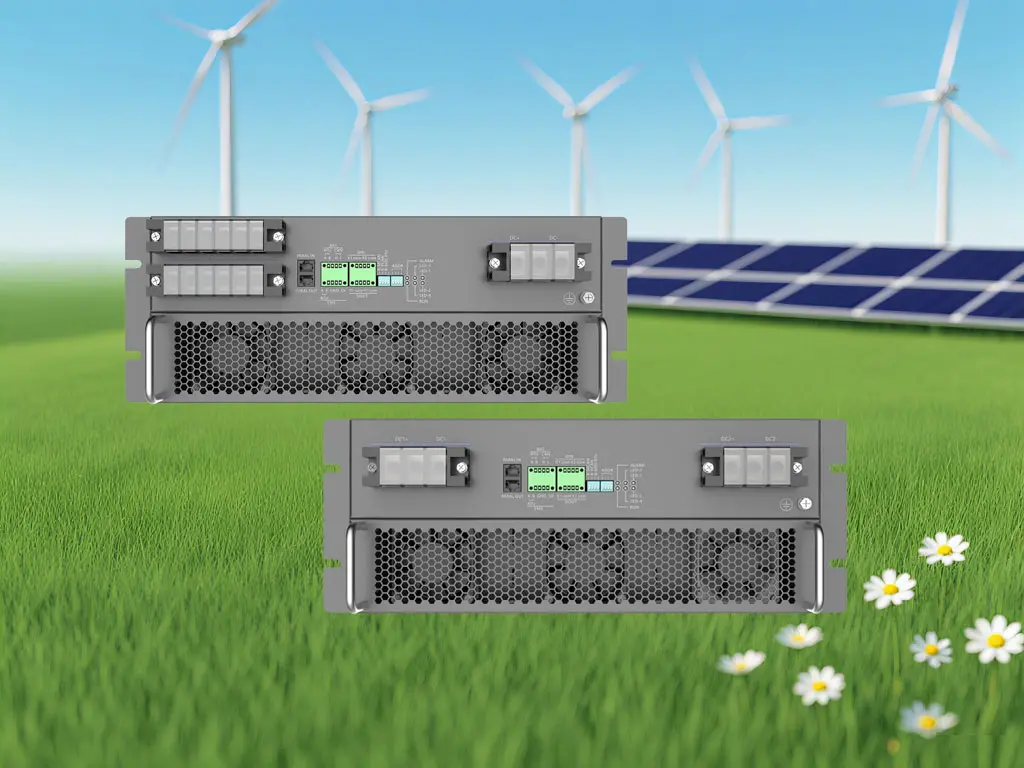

MSP120/M60KPV Series DCDC Modules
MSP120/M60KPV Series DCDC Modules
| Parameters | M60KPV | MSP120KPV | M105KPV |
|---|---|---|---|
| PV Parameters | |||
| Rated Power | 60kW | 120KW | 105KW |
| PV Open-Circuit Voltage | 200V-900V | 200V-900V | – (not specified in original, assumed same as similar if applicable, adjust as per actual) |
| MPPT Voltage Range | 200V-850V | 200V-850V | – |
| Rated Voltage | 500V | 600V | 525V |
| Start-up Voltage | 250V | – (not specified in original) | – |
| Input Circuit Number | 1 route/4 routes | 1 route/4 routes | 1 route |
| Maximum PV Current | 120A/40A×4 | 200A/60A×4 | 200A |
| Short-Circuit Current | -20%～15% | 60A×4 | – |
| High-Voltage Side Parameters | |||
| Voltage Range | – | 500V-900V | – |
| Rated Voltage | 680V | – (not specified in original for this item in this column) | – |
| Maximum Current | 90A | 180A | 180A |
| System Core Parameters | |||
| Communication Port | EMS: 485/Battery: CAN or 485 | – | – |
| DIDO | DI:2 routes/DO: 2 routes | – | – |
| Maximum Efficiency | – | 99.3% | – |
| Power Consumption | – | Standby < 15W/No-load < 100W | – |
| Protection Grade | – | IP20 (Core control part IP 5X) | – |
| Dimensions | WLH:440560183mm | – | – |
| Weight | 29kg | – | – |
| Temperature Range | -30 ～ 60°C | – | – |
| Humidity | 5 ～ 95% | – | – |
| Cooling Method | Intelligent forced air cooling | – | – |
| Altitude | 4000m (Derating used above 2000m) | – | – |
| Protection | Over-temperature protection, over-current protection, over-voltage protection, ground short-circuit protection | – | – |
For some parameters not specified in the original table for certain models, assumptions were made based on similar products in the series or left blank. Adjustments should be made according to the actual product information.
SunCare Hospital, a leading healthcare institution committed to sustainable operations and patient well-being, partnered with us to transition its energy source to solar. The project involved the full design and installation of a customized solar power system to reduce operating costs, increase energy reliability, and support the hospital's green initiatives.
This project was designed to meet the hospital’s energy needs while promoting sustainability, reducing costs, and ensuring uninterrupted service for patients and essential medical operations.
We provided a complete solar solution tailored to the hospital’s needs, ensuring performance, safety, and long-term energy savings without disrupting daily operations.
We analyzed usage patterns and infrastructure to design a system that meets specific energy needs.
Our team installed efficiently with zero interruption to hospital operations and strict safety procedures.
We created a solar layout that maximizes efficiency while matching the hospital’s structure and goals.
We integrated smart monitoring and backup support to ensure continuous power for critical medical equipment.
This project is more than just an energy upgrade, it is a commitment to health, sustainability, and community leadership. The SunCare Hospital solar installation reflects how renewable energy can enhance essential services without compromise.
