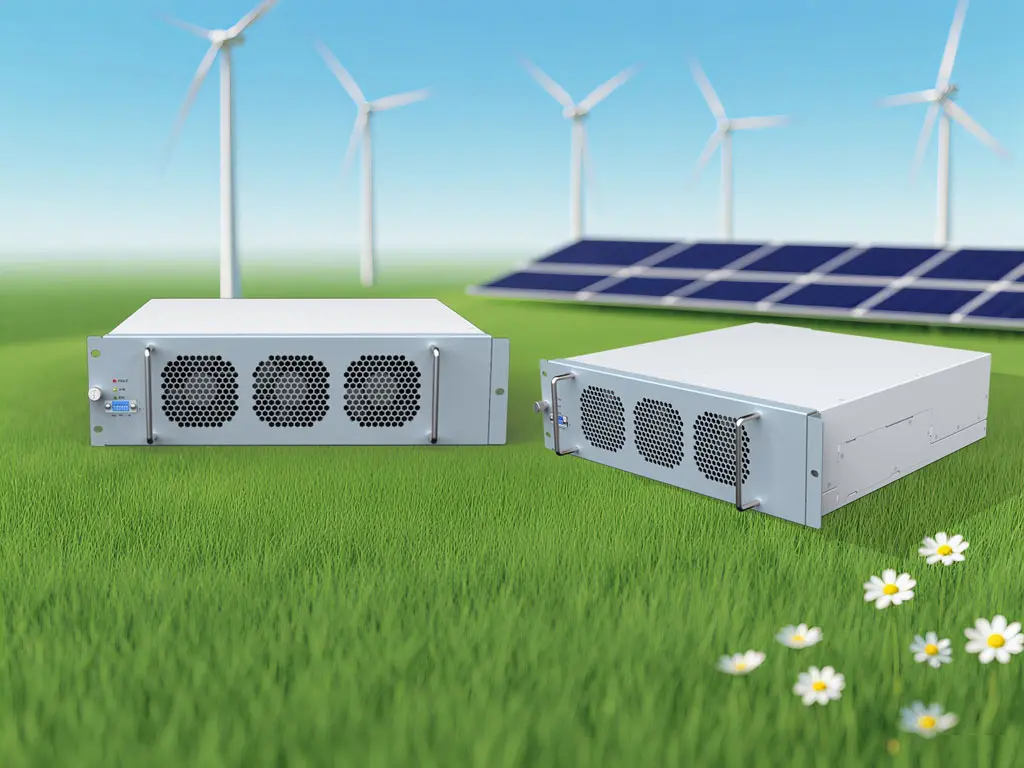

Innovative Features:

• Bidirectional energy flow: The same module realizes AC/DC bidirectional conversion function, enabling smooth transition when the current direction changes.
• Wide DC output voltage range: 650Vdc-1000Vdc, suitable for charging and discharging needs of different types of batteries.
• Wide temperature range: -40°C to +75°C, with derating output above +55°C, adapting to applications in various scenarios.
• High power density: Power density up to 62W/in³, saving space within the system and reducing installation space.
• Isolated air ducts and potting: The isolated air duct design improves heat dissipation efficiency, and the potting process significantly enhances protection capabilities such as salt spray resistance, moisture resistance, and mildew resistance of the module.

Main Characteristics:

• Energy-saving and environmentally friendly: Module energy conversion efficiency >98.7%, effectively improving customer profitability.
• Full digital control: Dual DSP design realizes full digital control of the charging module, ensuring high control reliability.
• No-injury hot swapping: The module has a true no-injury hot swapping function, allowing plug-and-play.
• Multi-module parallel operation: Up to 16 modules can operate in parallel, suitable for simultaneous use of different types of retired batteries.
• Low standby power consumption: Standby power consumption less than 15W, achieving energy conservation and environmental protection.
• Unique three-proof design: Unique salt spray resistance, moisture resistance, mildew resistance protection, and craftsmanship enable the module to adapt to various energy storage application scenarios.

Application Scenarios:

• Energy storage systems
• Integrated photovoltaic charging systems
• Microgrids with DC busbars and energy storage
• Stepwise utilization of retired batteries

 Basic Parameters

• AC Input (Rectification): 260Vac~530Vac; 45Hz~65Hz
• DC Output (Rectification): 150Vdc~1000Vdc
• DC Input (Inverter): 300Vdc~1000Vdc
• AC Output (Inverter): 260Vac~530Vac; Constant Power Output at 320Vac~530Vac
• Conversion Efficiency: Full Load Efficiency >96%, Peak Efficiency >97%
• Module Dimensions: 84mm (H) ×300mm (W) ×395mm (D) (Excluding Handles and Terminal Protrusions)
• Isolation: Yes

Rectification Mode

• Voltage Regulation Accuracy: <±0.5%
• Efficiency: Full Load Efficiency >96%, Peak Efficiency >97%
• Current Regulation Accuracy: ≤±1% (Output Load 20%~100% Rated Range)
• Output Voltage: 150Vdc~1000Vdc
• Current Range: 0~100A
• Rated Power: 30kW
• Current THD: <5% (50%~100% Full Load Output Power)
• Power Factor: ≥0.99 (Full Load Output)
• Input Voltage/Frequency Range: 260Vac~530Vac; 45Hz~65Hz
• Input Current Range: 0~48A
• Rated Voltage: 380Vac, 3L+PE

Inverter Mode

• Output Power Factor: Adjustable, Range 0.8~1, -0.8~-1
• Efficiency: Full Load Efficiency >96%, Peak Efficiency >97%
• Rated Power/Current: 30kW/40A
• THD: <5%
• Output AC Frequency: 50Hz/60Hz
• Output AC Voltage & Power: 260Vac~530Vac; Constant Power Output at 320Vac~530Vac
• DC Output Power: 100A
• DC Input Voltage: 300Vdc~1000Vdc

Other Parameters

• Dimensions: 84mm (H) ×300mm (W) ×395mm (D) (Excluding Handles and Terminal Protrusions)
• Weight: ≤16kg
• Communication Method: CAN Bus
• MTBF: >500,000 Hours
• Compliance Standards: TUV UL/CE
• Mode Switching Time: 10ms (Battery Test)

Operating Environment

• Relative Humidity: ≤95%RH, Non-Condensing
• Altitude: 2000m, Derating Required Above 2000m
• Cooling Method: Forced Air Cooling
• Operating Temperature: -40℃~+75℃, Derating Required Above 55℃
