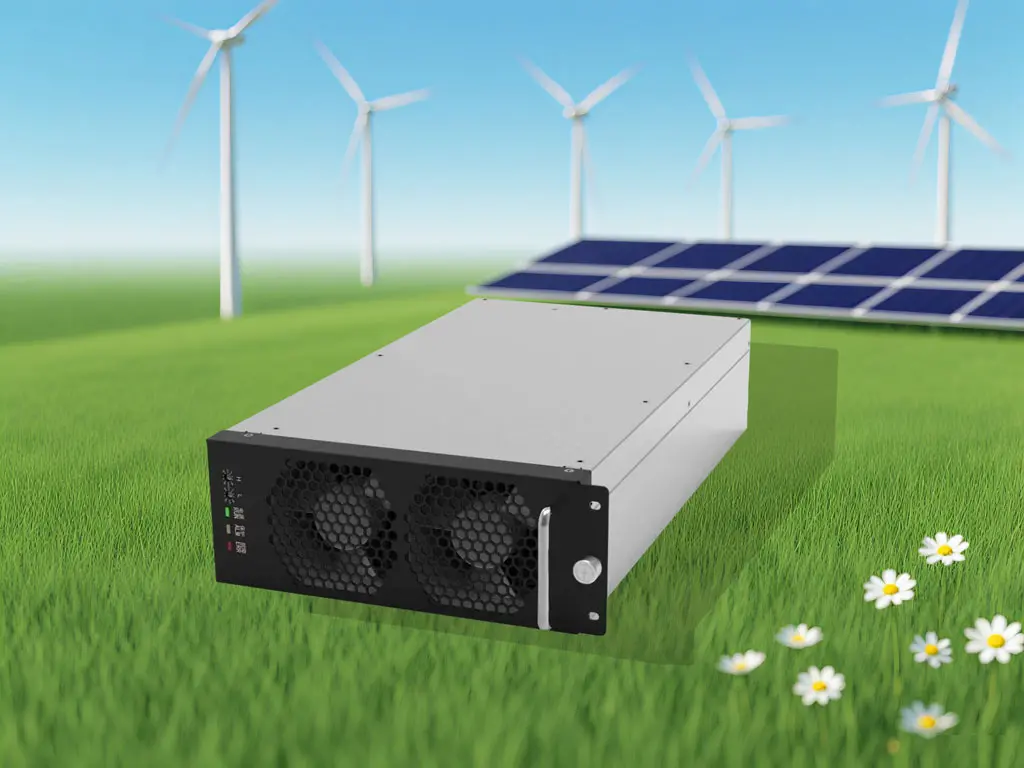

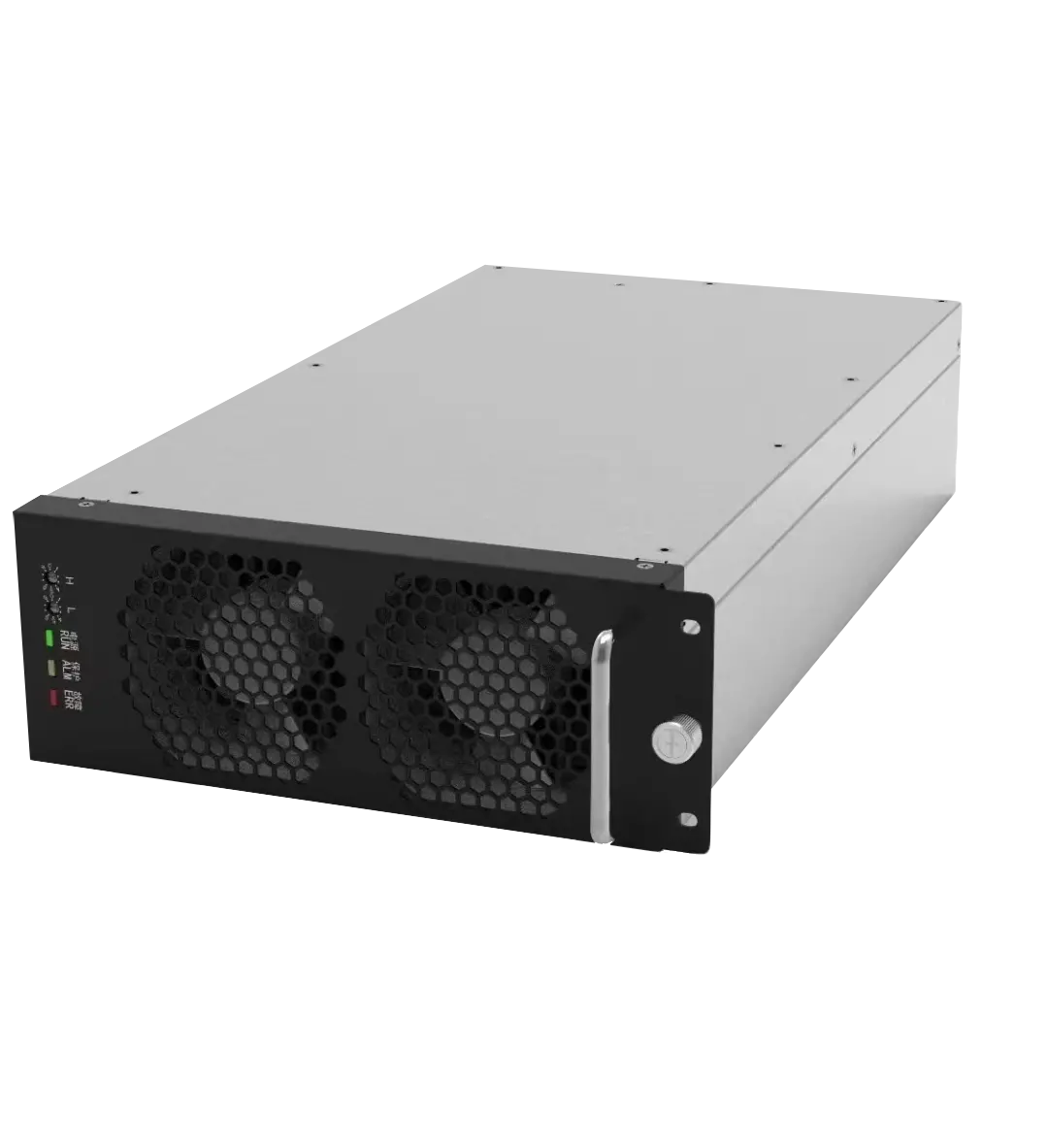

The LM100-20000 series high-frequency switching rectifier module is an ACDC module with adjustable AC voltage input and DC voltage output. The module adopts DSP digital control, resonant soft switching, active PFC technology, and is protected by multiple patents. The module features high power density, high power factor, low harmonics and high efficiency, and has the performance of allowing multiple modules to be paralleled.
| Item | Parameter Index |
|---|---|
| Module Type | IM100-20K, IM200-20K |
| IM100-20K | IM200-20K | |
|---|---|---|
| Rated Output Power | 20kW | |
| Rated Output Current | 200A | 100A |
| Output Voltage Range | 30VDC ~ 100VDC | 60VDC ~ 200VDC |
| Current-limiting Adjustable Range | 10% ~ 110% stepless adjustable | |
| Peak-to-peak Noise | ≤1% | |
| Telephone Weighting Noise | No requirement | |
| Voltage Stabilization Accuracy | ≤±0.5% | |
| Current Stabilization Accuracy | ≤±1% | |
| Average Current | ≤±5% | |
| Efficiency | ≥95% |
| Rated Input Voltage | Three-phase 380Vac/480Vac |
| Input Voltage Range | 323Vac ~ 520Vac (full load), 323Vac ~ 260Vac (linear down to half load) |
| Input Current | <40A |
| Frequency | 45Hz ~ 65Hz |
| Power Factor (PF) | ≥0.99 |
| Total Harmonic Distortion (THD) | ≤5% |
| Input Protection | Fuse; lightning protection circuit |
| Working Environment Temperature | -40°C ~ 50°C normal operation; 50°C ~ 75°C derating output |
| Storage Temperature | -40°C ~ 75°C |
| Relative Humidity | 0 ~ 95% |
| Altitude | 2000m full-load output |
| Insulation Strength | Input to chassis can withstand 50Hz effective value 2500VAC or equivalent 3535VDC withstand voltage for 1 minute; input to output can withstand 50Hz effective value 3000VAC or equivalent 4242VDC withstand voltage for 1 minute |
| MTBF | >120000 hours |
| Appearance Size | 214 (width) × 84 (height) × 396 (depth) mm |
| Module Net Weight | 9.3kg |
| Communication Interface | CAN |
| Maximum Parallel Quantity | 60 |
| Output positive and negative insurance protection | |
| Alarm and status are monitored through the CAN communication interface, and indicated by three panel LEDs |
