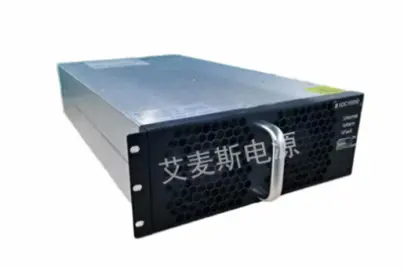

The BIDC10050 power module is a power module with bidirectional DC-DC conversion function. The voltage range on the battery side is 30 to 100Vdc, and the voltage range on the bus side is 200 to 420Vdc. The power module is equipped with DC reverse connection protection, overcurrent protection, overvoltage protection, over-temperature protection, short-circuit protection, etc
| Item | Parameter | Description |
|---|---|---|
| Electrical Parameters | ||
| DC Bus Side Parameters | DC bus voltage range | 200 ~ 420Vdc |
| DC bus current | 17Amax (≤12A under 200~290Vdc) | |
| Output voltage | 30~100Vdc | |
| Output rated current | 105A Max | |
| Output rated power | 5kW | |
| Battery Side Parameters | Output power derating | 50~100VDC, constant power 5KW / 30~50VDC constant current 100A |
| Charging efficiency | 94%Max | |
| Current regulation accuracy | ±5% | |
| Current ripple | 5% | |
| Voltage ripple | <2%VO | |
| Soft start time | 3s ≤t≤ 8s | |
| Discharging Part | ||
| Battery Side Parameters | Battery voltage range | 30~100Vdc |
| Discharging current | 105A Max | |
| DC bus voltage range | 200~420VDC | |
| DC Bus Side Parameters | Output rated power | 5KW |
| Output power derating | 50~100VDC, constant power 5KW / 30~50VDC constant current 100A | |
| Discharging efficiency | 94%Max | |
| Other Parts | ||
| Protection Functions | Overvoltage protection | Equipped |
| Overcurrent protection | Equipped | |
| Short-circuit protection | Equipped | |
| Over-temperature protection | Equipped | |
| Other Parameters | Operating temperature | -40°C ~ +60°C, output power derating above 55°C |
| Storage temperature | -40°C ~ +75°C | |
| Noise | <60dB | |
| Dimensions (widthdepthheight) | 220mm84mm400mm | |
| Weight | 6kgs | |
| Protection grade | Ip20 (single module) | |
| Cooling method | Forced air cooling | |
| Certification Standards | Also meet the standards for charging piles and energy storage converters, namely: 《GB/T 34120–2017 Technical specification for electrochemical energy storage system energy storage converter》《GB/T 34133–2017 Technical regulation for energy storage converter detection》GB/T 17626.2/3-2006 GB/T 17626.4/5/6-2008 |
