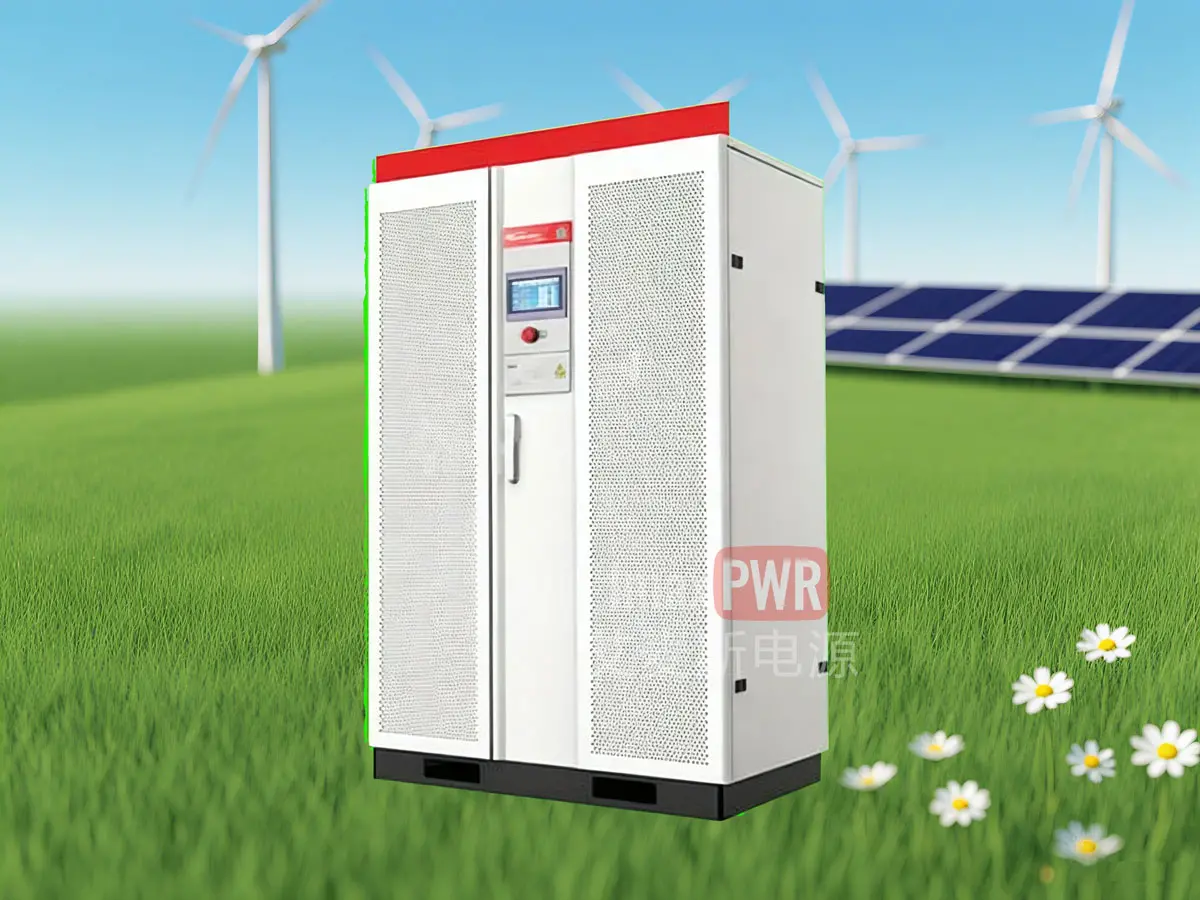

The INPPCS converter enables AC/DC conversion between the grid and batteries, facilitating bidirectional energy flow. It serves as the primary execution unit and core component in energy storage systems. Through advanced control strategies, it manages battery charging/discharging, controls power rates, and switches between grid-connected and off-grid modes. It also offers comprehensive protection functions, such as islanding protection, DC overvoltage protection, and low voltage ride-through, meeting both grid-connected and off-grid requirements.

Product Description

• Wide DC Voltage Range, Compatible with Multiple Battery Types
  Adapts to various battery chemistries, enhancing system flexibility and application scope.
• Touchscreen Operation, User-Friendly Design
  Features an intuitive touchscreen interface for easy operation and monitoring.
• Seamless Grid Connection/Disconnection Switching, Active/Reactive Power Control
  Enables smooth transitions between grid-connected and off-grid modes, with precise control over active and reactive power.
• Supports Multi-Machine Parallel Operation, Excellent Scalability
  Allows parallel operation of multiple units, facilitating system expansion and redundancy.
• Intelligent Air Cooling, No Derating at 50°C Ambient Temperature
  Utilizes intelligent cooling technology to maintain performance in high-temperature environments.
• Fast Power Response <20ms, Accepts Grid Dispatch
  Achieves rapid power adjustments within 20 milliseconds, complying with grid dispatch commands.
• Equipped with VF, PQ, VSG, Black Start Functions
  Offers multiple operating modes, including voltage/frequency control, active/reactive power control, virtual synchronous generator, and black start capabilities.
• Charging/Discharging Conversion Time <20ms
  Ensures swift mode transitions during charging and discharging cycles.

Technical Parameters

Additional Features

• Supports Grid-Forming Function
  Provides inertia support, impedance control, and black start capabilities. Grid-connected and grid-forming modes can switch based on demand.
• High Protection Rating IP65 + C4 (C5 Customizable)
  Features independent designs for electronic and power compartments, ensuring efficient and intelligent cooling.
• Supports Deep Continuous Fault Ride-Through
  Meets GB/T34120-2023 standards, with 0ms continuous high/low voltage ride-through and zero-crossing capabilities.
• Multiple Operating Modes (PQ, VF, VSG)
  Caters to diverse application needs; supports one-click online switching and flexible adjustments.
• Charging/Discharging Conversion/Power Rapid Response (<20ms)
  Supports source-grid-load coordinated scheduling.
• Communication Protocols
  Supports CAN/RS485/Ethernet communication, CAN2.0/Modbus protocols, and complies with IEC61850 goose/mms and IEC104 standards.
