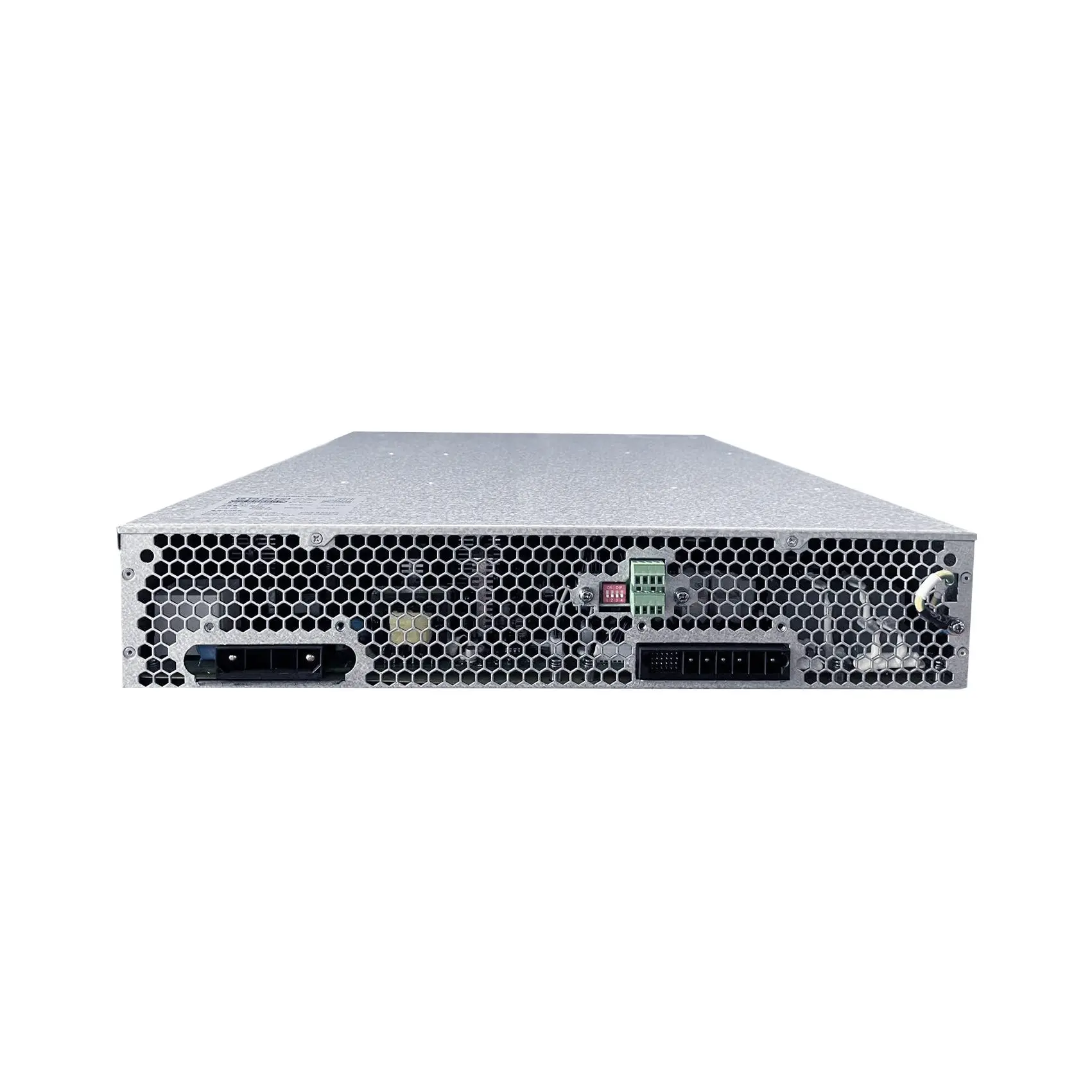

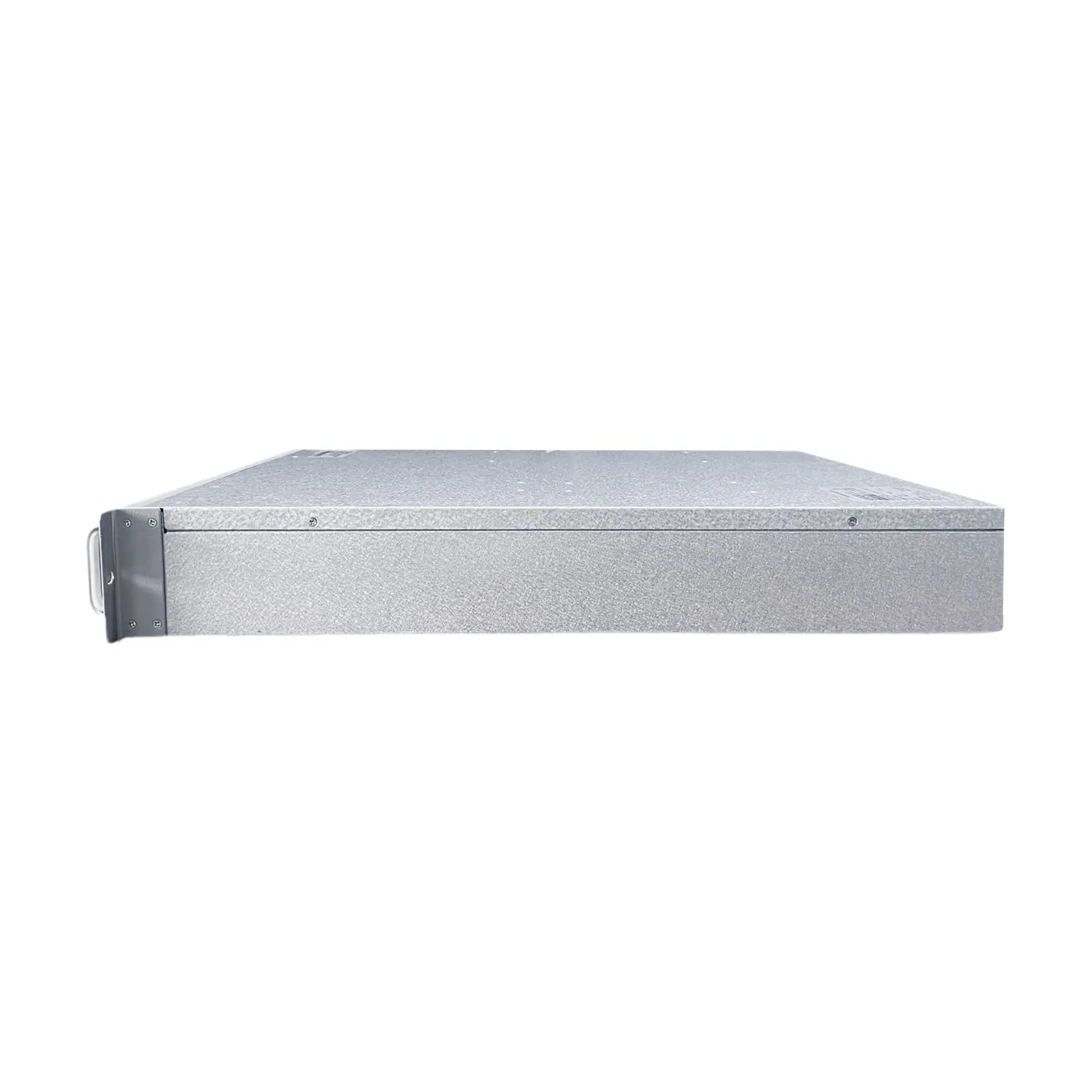

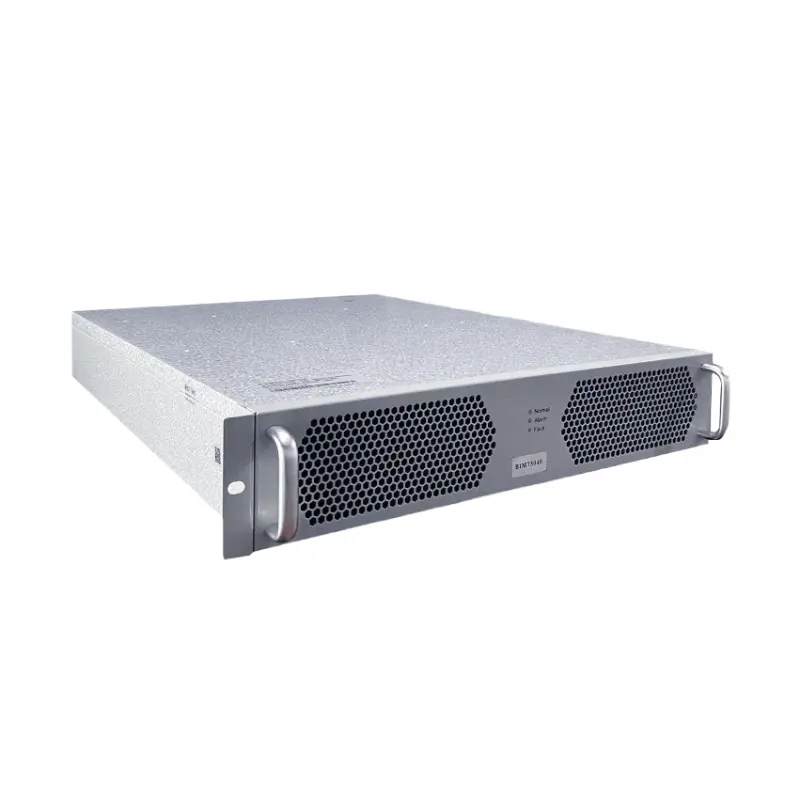

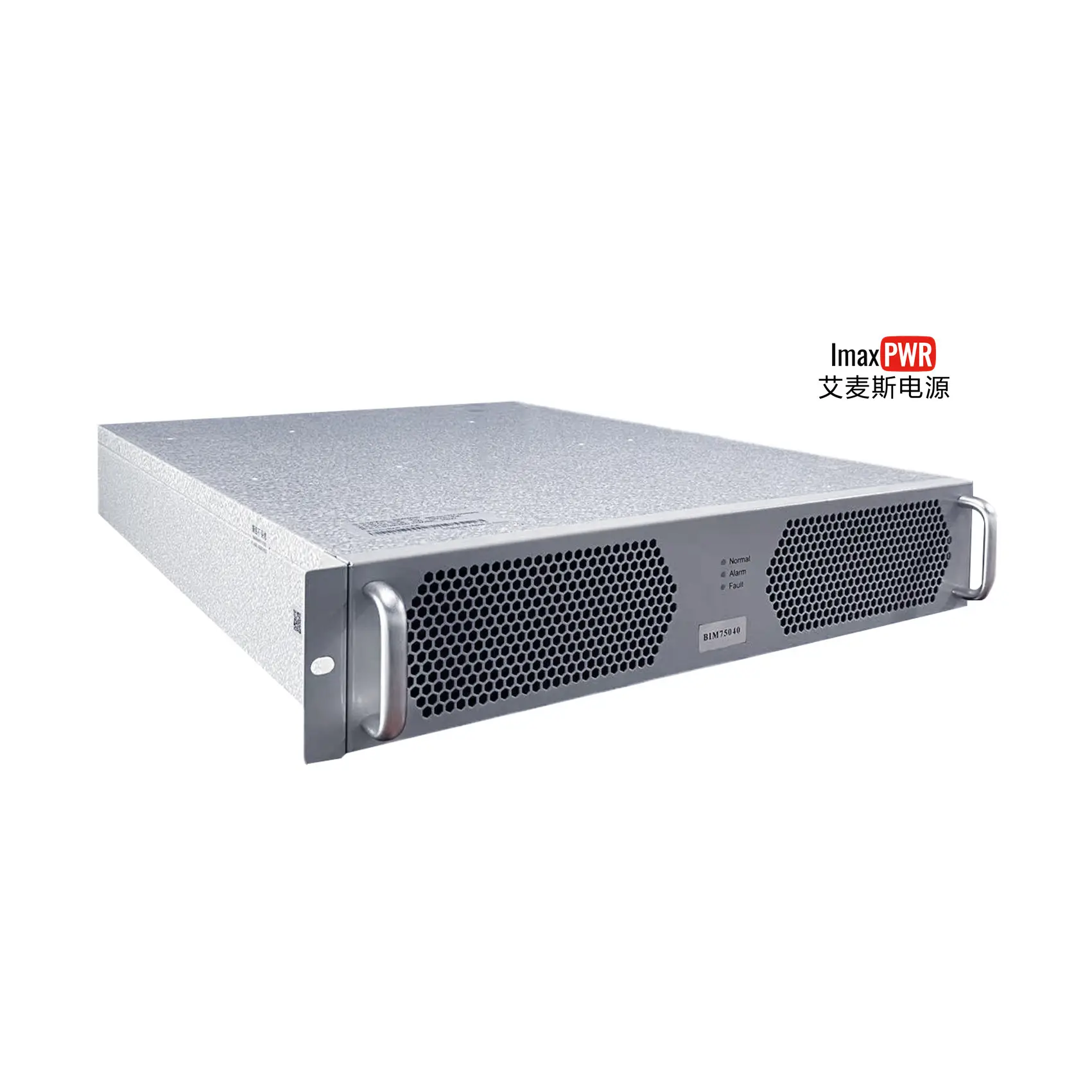

20kW DC200~750V Bidirectional AC/DC Power converter

20kW DC200~750V Bidirectional AC/DC Power converter - 图片 3

20kW DC200~750V Bidirectional AC/DC Power converter - 图片 4

Product Name	20kW Bidirectional ACDC power converter
Model Number	BIM75040
AC Input Voltage	380/400/415Vac
Output Voltage (Rated)	60~750Vdc
Output Current(Rated)	40A

Features:

More safety and reliability,Reliable parallel function, convenient power expansion, up to 12 modules in parallel;
Higher efficiency,the high-frequency isolation efficiency is higher, up to 95%;
More intelligent and friendly;
Lower cost The high-frequency isolation saves the power frequency transformer and the system cost is low;
More flexible configuration,Module hot swap design, flexible system configuration.
Cooperate with STS module, support seamless switching between on grid and off grid;

Covering multiple battery voltage levels of passenger vehicle (60V~750Vdc), the voltage range of battery is wide;

Wide grid voltage range and 50 / 60Hz voltage frequency adaptive capability.

Specifcations:

Product name		20kW Bidirectional AC/DC power converter
Product model		BIM75040
Charging
AC side parameter	Rated grid voltage	400Vac (380/400/415Vaccanset)
	Grid voltage range	304Vac~485Vac
	Grid voltage frequency	50/60±5% (50Hz/60Hz Both modesself-adaption)
	Voltage systems	Three-phasefour-wire (3W+PE)
	Input current	≤38A
	power factor	≥0.99,full load
	Current harmonics	<3%,full load
	Output voltage	60~750VDC,rated500VDC
Battery side parameter	Output rated current	40A
	Rated power	20kW
	Power derating	304Vac~485Vac input,full load output
	Chargeefficiency	95%max (Use SiC components) ,94% (Use Si components)
	Stabilized voltage	±0.5%
	precision	±0.5%
	Stabilized current	± 1%
	precision	± 1%
	Ripplefactor	<1%Vo

Discharging
Battery side parameter	Rated grid voltage	60~750VDC
Battery side parameter	Discharging current	40A Max
AC side parameter	V2G(on-grid discharging)
	Grid voltage range	304Vac~485Vac
	Grid voltage frequency	50/60±5%(50Hz/60HzBoth modesself-adaption)
	Outputpower	20kW
	Efficiency	95%max (Use SiC components) ,94% (Use Si components)
Other feature
Protect function	OV protection	Available
	OC protection	Available
	SC protection	Available
	OT protection	Available
Other parameter	Operating temperature	-30~65℃,55℃ above output power derating
	Storage temperature	-40~75℃
	Noise	<60dB
	Dimension	44257586mm(WHD)
	Weight	21Kgs
	Level of protection	IP20(single module)
	Cooling method	Intelligent speed regulation, forced air cooling
