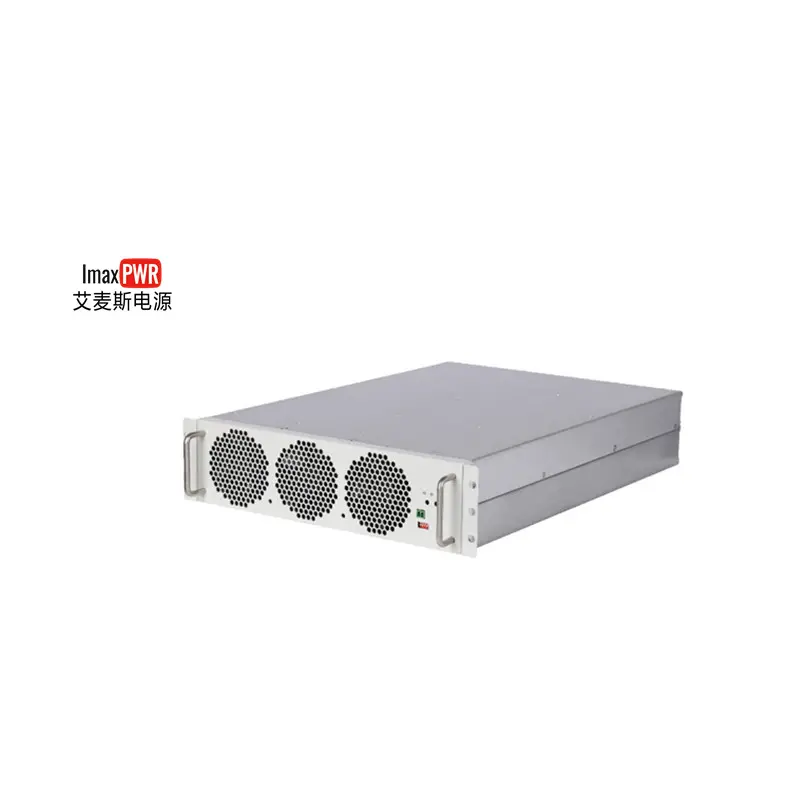

This Bi-directional AC/DC converter for energy storage features a three-level topology, enabling seamless conversion between DC and AC. It efficiently charges the battery by converting AC to DC, and also provides AC power to the load or feeds excess energy back to the grid.

Features:

• Three-level topology, the highest conversion efficiency >98.5%;
• High dynamic response, full load switching time as low as 10ms;
• Support multi-machine parallel operation, expandable to 2MW;
• Modular equipment makes the configuration more flexible and easy to maintain;
• High-speed IGBT, low internal resistance filter;
• Off-grid seamless switching, fast response, to ensure continuous and uninterrupted power supply of key loads;
• Wide DC input range, supporting cascade battery utilization;
• Independent adjustment of active and reactive power to improve power quality.

Typical Application:

• Energy storage, lithium battery testing;
• AC/DC analog power supply, electronic load;
• Energy storage inverter;
• Peak shaving and valley filling: store electricity when the electricity price is low, and discharge it during the peak period of electricity consumption, saving electricity cost;
• Uninterrupted power supply: When the power grid fails, the system can provide uninterrupted off-grid power supply to ensure the normal operation of the load;
• Dynamic capacity increase: Compensate for short-term power resources shortage and delay power distribution investment;
• Power quality management, compensation for transient drop of grid voltage, load power factor and harmonic current;Can form a hybrid microgrid system.
