· Enhanced Safety and Reliability:
High-frequency isolation design ensures safety between the battery and the grid/load.
DSP+CPLD digital control with multiple levels of software and hardware protection against overcurrent, overvoltage, and overtemperature ensures safety and reliability.
Dual DSP design provides stable and reliable performance.
Reliable parallel connection capability allows for convenient power expansion, supporting up to 12 module parallel connections.
· Higher Efficiency:
Compared to traditional bidirectional power supply solutions, high-frequency isolation eliminates the need for a line frequency transformer, resulting in higher overall efficiency, exceeding 95%.
The AC/DC module adopts three-level tec
The DC/DC converter adopts soft-switching resonant technology, achieving up to 98% efficiency.
· Intelligent and User-Friendly:
Seamless grid connection and disconnection are supported when used in conjunction with the STS module.
It covers multiple battery voltage levels for passenger vehicles (100V~750Vdc), offering a wide range of adaptability.
Wide range of grid voltage and adaptive capability for 50/60Hz voltage frequency.
· Lower Cost:
High-frequency isolation eliminates the need for a line frequency transformer, reducing system costs.
Charging and inversion functions are achieved through a single circuit, combining charging and discharging in one system, resulting in lower costs.
· Flexible Configuration:
Support for standard 19-inch rack installation, compact structure.
Module hot-swappable design allows for flexible system configuration.
Convenient for system integrators to flexibly design various energy storage or battery integration systems.
· Energy Storage (V2G for Electric Vehicle Energy Storage):
With the increasing number of electric vehicles, it is predicted that by 2030, there will be 80 million electric vehicles globally. Massive amounts of electric vehicles can serve as flexible loads on the user side and distributed power generation devices. V2G enables bidirectional energy flow between electric vehicles and the power grid, allowing electric vehicle owners to charge during off-peak hours and discharge during peak hours to take advantage of price differentials. It enhances load flexibility, reduces distribution network investments, and promotes the integration of clean energy. Moreover, it contributes to the development of the electric vehicle industry and reduces the land occupation of public charging facilities.

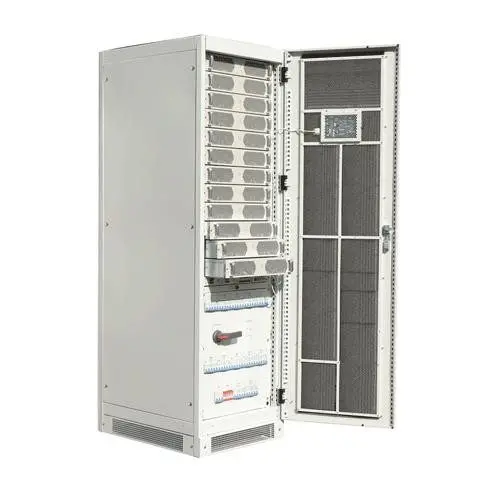

| Product name | 200KW Bidirectional AC/DC power energy system | |
| Product model | BIM75040-200KW | |
| Charging | ||
| AC side parameter | Rated grid voltage | 400Vac (380/400/415Vaccanset) |
| Grid voltage range | 304Vac~485Vac | |
| Grid voltage frequency | 50/60±5% (50Hz/60Hz Both modesself-adaption) | |
| Voltage systems | Three-phasefour-wire (3W+PE) | |
| Input current | ≤380A | |
| powerfactor | ≥0.99,full load | |
| Current harmonics | <3%,full load | |
| Battery side parameter | Output voltage | 200~750VDC,rated500VDC |
| Output rated current | 400A | |
| Rated power | 200kW | |
| Power derating | 304Vac~485Vac input,full load output | |
| Chargeefficiency | 95%max (Use SiC components) ,94% (Use Si components) | |
| Voltage regulation accuracy | ±0.5% | |
| Current regulation accuracy | ± 1% | |
| Ripplefactor | <1%Vo | |
| Discharging | ||
| Battery side parameter | Rated grid voltage | 200~750VDC |
| Discharging current | 400A Max | |
| AC side parameter | V2G(on-grid discharging) | |
| Grid voltage range | 304Vac~485Vac | |
| Grid voltage frequency | 50/60±5%(50Hz/60HzBoth modesself-adaption) | |
| Outputpower | 200kW | |
| Efficiency | 95%max (Use SiC components) ,94% (Use Si components) | |
| Other feature | ||
| Protect function | OV protection | Available |
| OC protection | Available | |
| SC protection | Available | |
| OT protection | Available | |
| Other parameter | Operating temperature | -30~65℃,55℃ above output power derating |
| Storage temperature | -40~75℃ | |
| Noise | <60dB | |
| Dimension | 600*800*2000m’m | |
| Weight | 260Kmmgs | |
| Level of protection | IP20(single module) | |
| Cooling method | Intelligent speed regulation, forced air cooling | |
