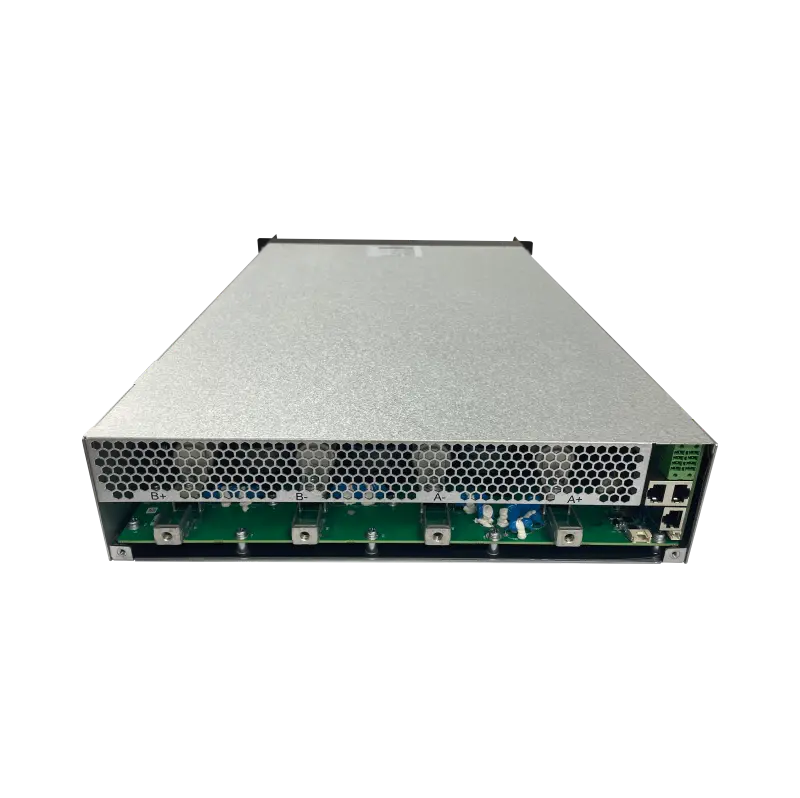

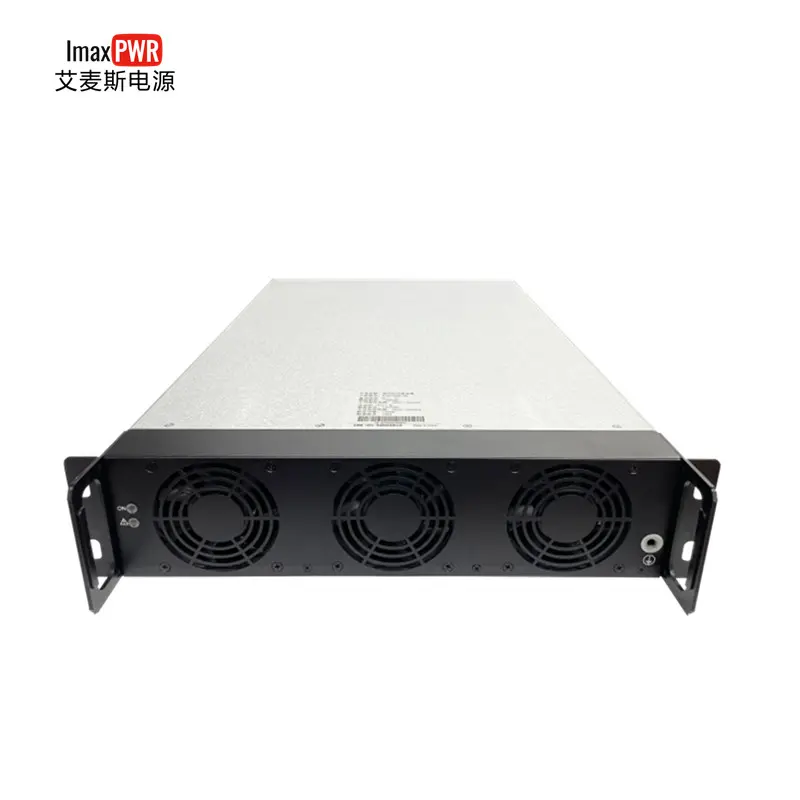

| Product Name | 125kW bidirectional DC-DC converter |
| Model Number | BIDC1500100 |
| DC bus side (Rated voltage) | 1500VDC |
| Working voltage range | 500V~1500VDC |
| Battery pack side (Rated voltage) | 1250VDC |
| Working voltage range | 500V to 1500VDC |
| Rated power | 125KW@1250V |
| Rated current (low voltage side) | 100A |
| Efficiency | Peak ≥99.2% |
| Dimensions (W × H × L) | 350×85×600mm |
|
| Wide power range efficiency up to 99.2% |
| CEC efficiency >99% |
|
| Short circuit protection |
| Fault current ms-level cut-off capability |
| Short-circuit capacity I²t<50A²s |
|
| 6.34kW/L, forced air cooling |
| Integrated control unit, power relay, fuse |
|
| Supports parallel operation for current balancing |
| Supports constant current and constant voltage charging and discharging |
| Integrated MPPT algorithm for photovoltaic maximum power generation. |
|
| IEC 62477-1 |
| DC busbar side (Port A) | |
| Rated voltage | 1500VDC |
| Working voltage range | 500V~1500VDC |
| Battery pack side (Port B) | |
| Rated voltage | 1250VDC |
| Working voltage range | 500V to 1500VDC |
| Bidirectional conversion performance | |
| Rated power | 125KW@1250V) |
| Rated current (low voltage side) | 100A |
| Efficiency | Peak ≥99.2% |
| Power response time | ≤5ms |
| Mechanical specifications | |
| Dimensions (W × H × L) | 350×85×600mm |
| G.W | <15kgs |
| Environmental parameters | |
| Operating temperature | -25 to 55 ° C (current derating above 40 ° C /45 °C) |
| Operating humidity | 5% ~ 85% |
| Noise | <70dB, ring temperature <30 ° |
| C <75dB, peak | |
| Pollution level | PD2 |
| Overvoltage level | OVII |
