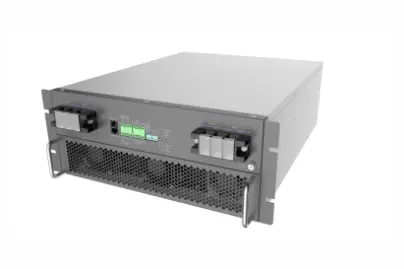

100KW bidirectional DCDC module, mainly using third-generation semiconductors, is small in size and high in efficiency. Air duct isolation ensures good environmental adaptability. It is mainly applied to small and medium-sized industrial and commercial energy storage DC-coupled microgrids.
■ Function Description:
■ Product Specification Parameters:
| Specification Parameters | M100KDC1 | M100KDC4 |
|---|---|---|
| Battery Parameters | ||
| Rated Power | 105kW | |
| Battery Voltage Range | 200V-900V | |
| Rated Voltage | 525V | |
| Battery Input Circuit Number | 1 | 4 |
| Maximum Battery Current | 200A | 50A+50A+50A+50A |
| High-Voltage Side Parameters | ||
| Voltage Range | 500V-900V | |
| Rated Voltage | 680V | |
| Maximum Current | 180A | |
| System Parameters | ||
| Communication Port | EMS: RS485 Battery: CAN or RS485 |
|
| DIDO | DI: 2 channels, DO: 2 channels | |
| Maximum Efficiency | 99% | |
| Installation Method | Plug-in frame | |
| Loss | Standby <10W, No-load <100W | |
| Weight | TBD | |
| Dimensions | WHD: 440183560mm | |
| Protection | IP5X (core control part) | |
| Temperature Range | -30~60°C | |
| Humidity Range | 5%~95% | |
| Cooling Method | Intelligent forced air cooling | |
| Noise | 50dB | |
| Altitude | 4000m (>2000m derating) | |
| Protection Features | Over-temperature protection, over-current protection, over-voltage protection, ground fault protection | |
| Certification | CE, IEC62477, IEC62019, IEC6100 | |
| Soft-start Circuitry | Yes |
