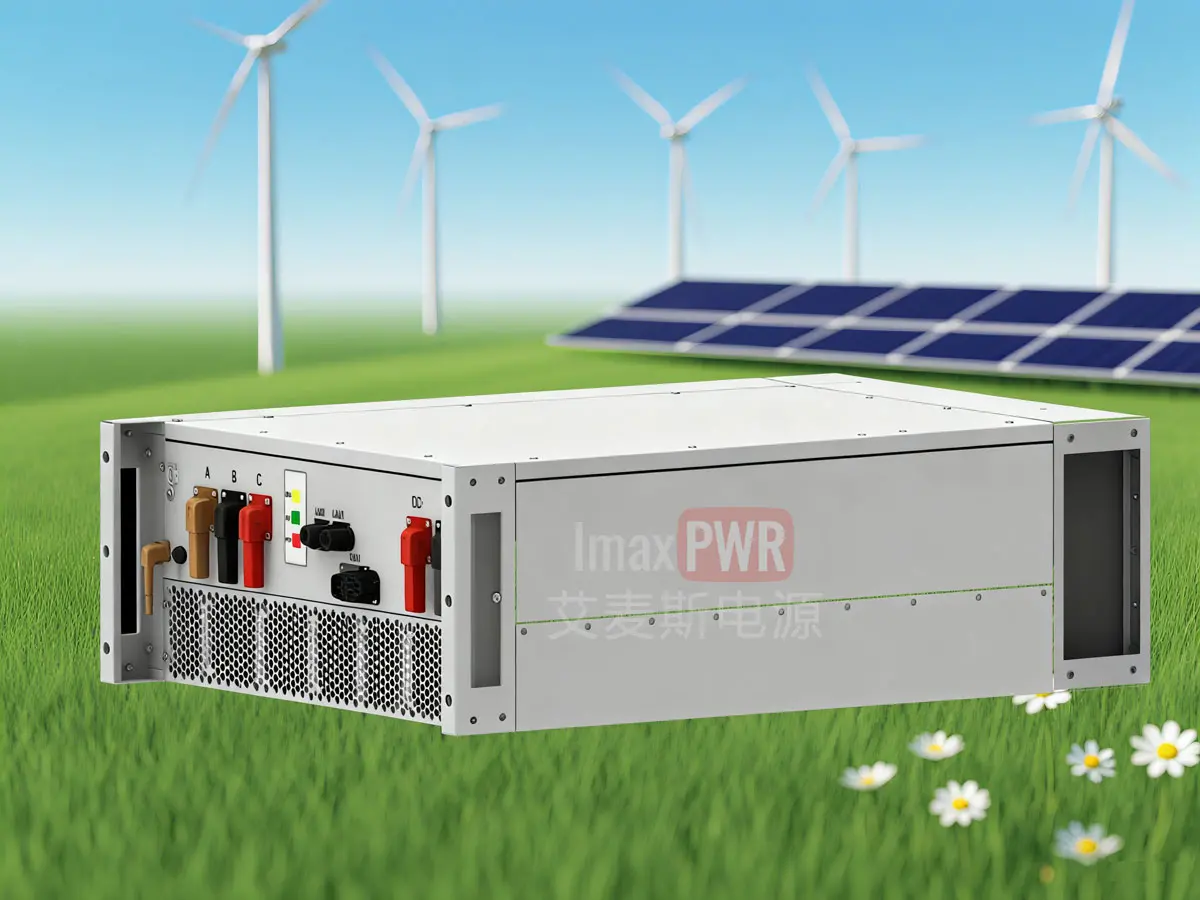

1000 - 1500Vdc 245A 215kW energy storage converter module

Project Detail

Home – Project Detail

1000 – 1500Vdc 245A 215kW energy storage converter module

DC Voltage Range: 1000~1500V (full load: 1050~1500V)
Maximum DC Side Current: 245A
Allowable AC Voltage Range: 690V (-15% to +15%)
Operating Temperature: -25~60°C (full load operation above 45°C)
Protection Class: IP66
Noise Level: ≤75dB
Maximum Conversion Efficiency: ≥99%
Weight: 90kg

215kW modular power conversion system (PCS)

Modular Converter for 5MW (24 DC Circuits) String-type Boost Integrated Machine & 314Ah Distributed Energy Storage System

This product is a modular converter specifically designed for 5MW (24 DC circuits) string-type boost integrated machines and 314Ah distributed energy storage systems. With a rated power of 215kW, it offers a wide battery voltage range of 1000~1500V and an IP66 high protection rating. It can be flexibly adapted to both centralized energy storage power stations and user-side distributed energy storage cabinets.

Product Features

26 AC-side Direct Parallel Connections: Supports up to 26 AC-side direct parallel connections, enabling flexible system expansion and high system availability. This feature simplifies system design and enhances reliability.
Grid-Forming Function: Equipped with grid-forming capabilities, allowing it to operate stably in various grid conditions and support grid stability during fluctuations.
Integrated Three-Drawer and Cube Design: Combines three drawers and a cube into one unit, offering flexible installation options and saving space. This design facilitates easy maintenance and replacement.
IP66 High Protection Rating: With an IP66 rating, it can withstand harsh environments, including dust, moisture, and extreme temperatures, ensuring reliable operation in diverse conditions.
Maximum Efficiency > 99%: Achieves a maximum efficiency greater than 99%, minimizing energy losses and maximizing system performance. This high efficiency contributes to lower operating costs and higher returns on investment.
High/Low Voltage Ride-Through and Continuous Fault Ride-Through: Meets the requirements of GB/T34120-2023, providing high/low voltage ride-through and continuous fault ride-through functions. This ensures stable operation during grid disturbances and enhances system resilience.

Technical Parameters

DC Voltage Range: 1000~1500V (full load: 1050~1500V)
Maximum DC Side Current: 245A
Allowable AC Voltage Range: 690V (-15% to +15%)
Operating Temperature: -25~60°C (full load operation above 45°C)
Protection Class: IP66
Noise Level: ≤75dB
Maximum Conversion Efficiency: ≥99%
Weight: 90kg
Altitude: <4000m (derating above 2000m)
Dimensions (WidthDepthHeight): 750820275mm
Structural Wiring: Primary and secondary front, front air intake and rear air outlet
